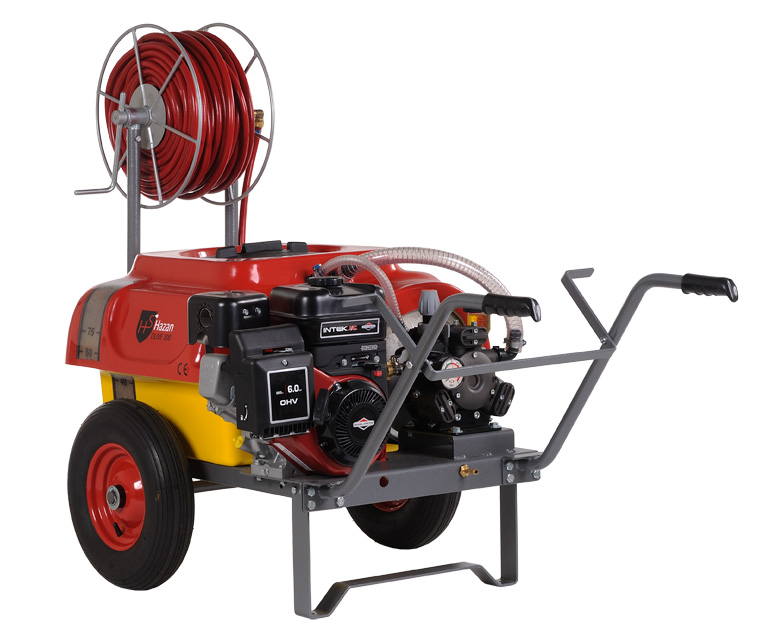

OLIVE 100 Wheelbarrow features

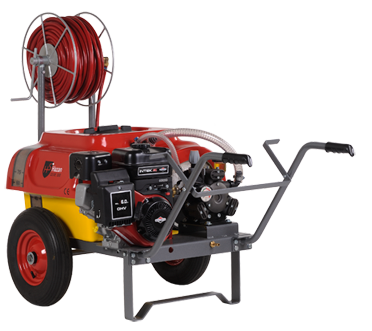

Olive100-Optional Unit


Optional unit
Code: HWB100F101+100204+100617
Dimensions: LXWXH (cm): 110x83x116
Weight: 84.4 Kg

Base unit
Code: HWB100F
Dimensions: LXWXH(cm): 88x83x70
Weight: 43 Kg


Wheelbarrow type sprayer with pulley driven system, 100 L fiberglass tank with external level indicator with graduated scale, total drainage tank,  drainage tap, internal suction filter, agitation via return hose, 15m rubber hose Ø10 mm – 40 bar, 30 cm spray gun, 2 pneumatic wheels 4.00x8.


Code Pump Delivery L/min Pressure bar Regulator Engine Specifications Weight Kg
HWB100F101 Comet APS 31 25 40 Gemini 2 outlet 40 bar B & S Intek I/C 6.0 HP 29.4
HWB100F102 Comet APS 31 25 40 Gemini 2 outlet 40 bar Kohler Courage  6.5 HP 29.4
HWB100F103 Comet APS 31 25 40 Gemini 2 outlet 40 bar Loncin G200F 6.5 HP 29.4
HWB100F104 Comet APS 31 25 40 Gemini 2 outlet 40 bar Electrical Single-Phase 230V 50 Hz  3 HP 31
HWB100F105 Comet APS 31 25 40 Gemini 2 outlet 40 bar Electrical Three-Phase 400V 50 Hz  3 HP 31
HWB100F106 Udor KAPPA 33 33 40 DL 2 outlet 40 bar B & S  Intek I/C  6.0 HP 30
HWB100F107 Udor KAPPA 33 33 40 DL 2 outlet 40 bar Kohler Courage  6.5 HP 30
HWB100F108 Udor KAPPA 33 33 40 DL 2 outlet 40 bar Loncin G200F  6.5 HP 30
HWB100F109 Udor KAPPA 33 33 40 DL 2 outlet 40 bar Electrical Single-Phase 230V 50 Hz 3 HP 31.5
HWB100F110 Udor KAPPA 33 33 40 DL 2 outlet 40 bar Electrical Three-Phase 400V 50 Hz  3 HP 31.5


Legend Code


H Hazan
WB Wheelbarrow
100 Tank capacity (Lt)
F Fiberglass Tank
101 Pump – Regulator - Engine type


Optional Engines

B & S Intek I/C
6.0 HP

Kohler Courage
6.5 HP

Loncin G200F
6.5 HP

Electrical Single Phase
230V 50 Hz 3 HP

Engine Displacement: 205 cc
Fuel Type: Gasoline
Dry Weight: 16 Kg

Engine Displacement: 196 cc
Fuel Type: Gasoline
Dry Weight: 16 Kg

Engine Displacement: 196 cc
Fuel Type: Gasoline
Dry Weight: 16 Kg

KW: 2.2
R.P.M: 2810
Weight: 17.5 Kg

Electrical Three Phase
400V 50 Hz 3 HP



KW: 2.2
R.P.M: 2850
Weight: 17.5 Kg



Optional Pumps & Regulators

Comet APS 31 - 3 diaphragms

Regulator Gemini

Udor KAPPA 33 – 3 diaphragms

Regulator DL

Power: 2.7 HP
R.P.M:  550
Weight: 10 Kg

Pressure: 40 bar
Max Delivery: 50 L/min
Weight: 0.9  Kg

Power:  3.0 HP
R.P.M: 550
Weight: 11 Kg

Pressure: 40 bar
Max Delivery: 100 L/min
Weight: 1 Kg

Optional Extras

Front wheels kit

Towing shaft kit

WB hose reel Garden Mini 50 kit

Rubber hose Ø10mm
40 bar L50m


Code: 100573
Dimensions LXWXH (cm):
53x17x26
Weight: 5 Kg

Code: 100448
Dimensions LXWXH (cm):
95x62x56
Weight: 8 Kg

Code:  100204
Dimensions LXWXH (cm):
40x48x98
Weight: 6 Kg

Code:  100617
Dimensions LXWXH (cm):
40x17x40
Weight: 8.5 Kg



Features are subject to change without prior notice.
